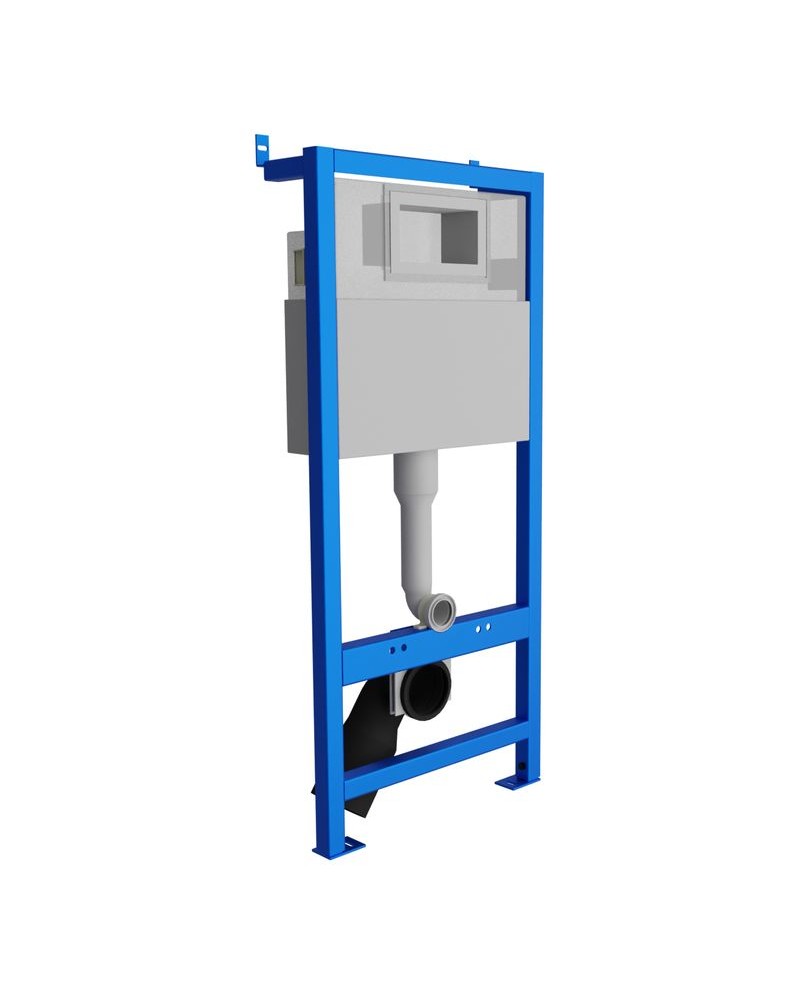

Reliable frame for flush-mounted toilet installation LAV 100

The LAV 100 frame is intended for flush-mounted installation of the hanging bowl. The product width is 510mm . The frame has rich equipment : a steel frame, a set of connection elements, a set of screws and bolts for assembly, adjustable legs that can be extended up to 160 mm, a toilet connection stub and a soundproofing mat. Thanks to this complete set , installation of the LAV 100 frame is extremely quick and hassle-free. A wide range of buttons available in our offer will allow you to create and emphasize the unique design of your bathroom.

The highest quality of workmanship - LAV 100 flush-mounted frame

The LAV 100 frame is made of the best quality materials and has a reliable flushing system . Control of the production of frames and exceptional attention to every detail allowed us to create an extremely durable, stable and resistant product. A concealed frame will save space in the bathroom, visually enlarge the interior, and above all, give it a unique look.

5908211494845

Data sheet

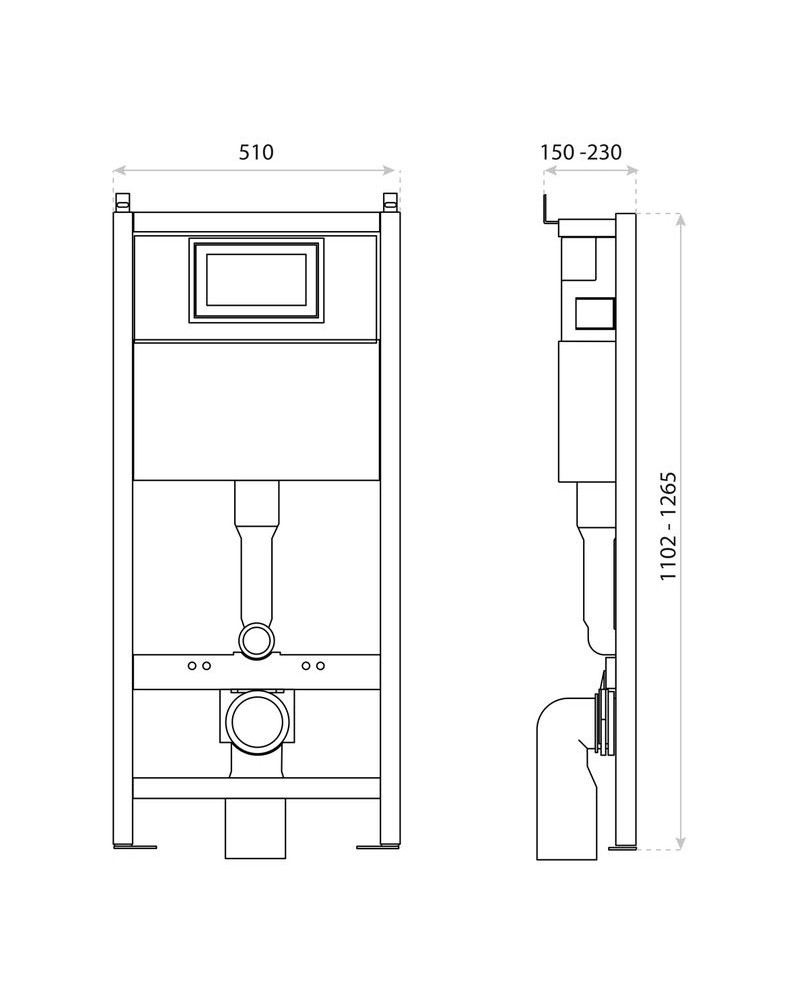

Size (in mm) (height x width)
1105-1265x510
Mounting screw spacing (mm)
180/230
Depth adjustability (mm)
150-230
Adjustable height (mm)
1105-1265
Material of frame
Stainless steel
Type of tank
Single-piece
